Deye Residential ESS
GB-L Pro Home Batteries
A high-voltage, stackable LiFePO4 storage family from 8 kWh to 24 kWh, available as the GB-L8, GB-L12, GB-L16, GB-L20 and GB-L24 Pro.
Store your solar, use it after sunset

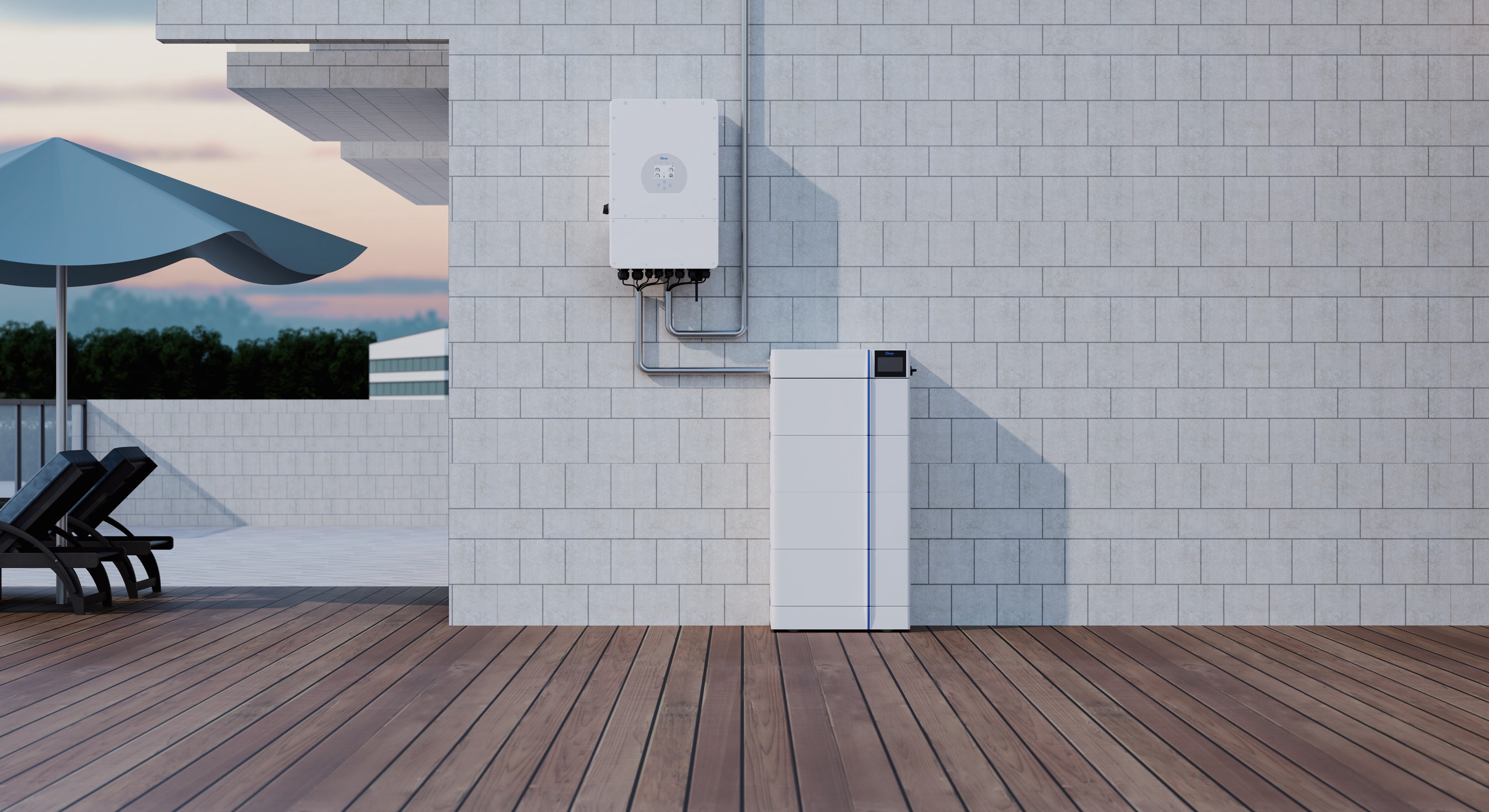

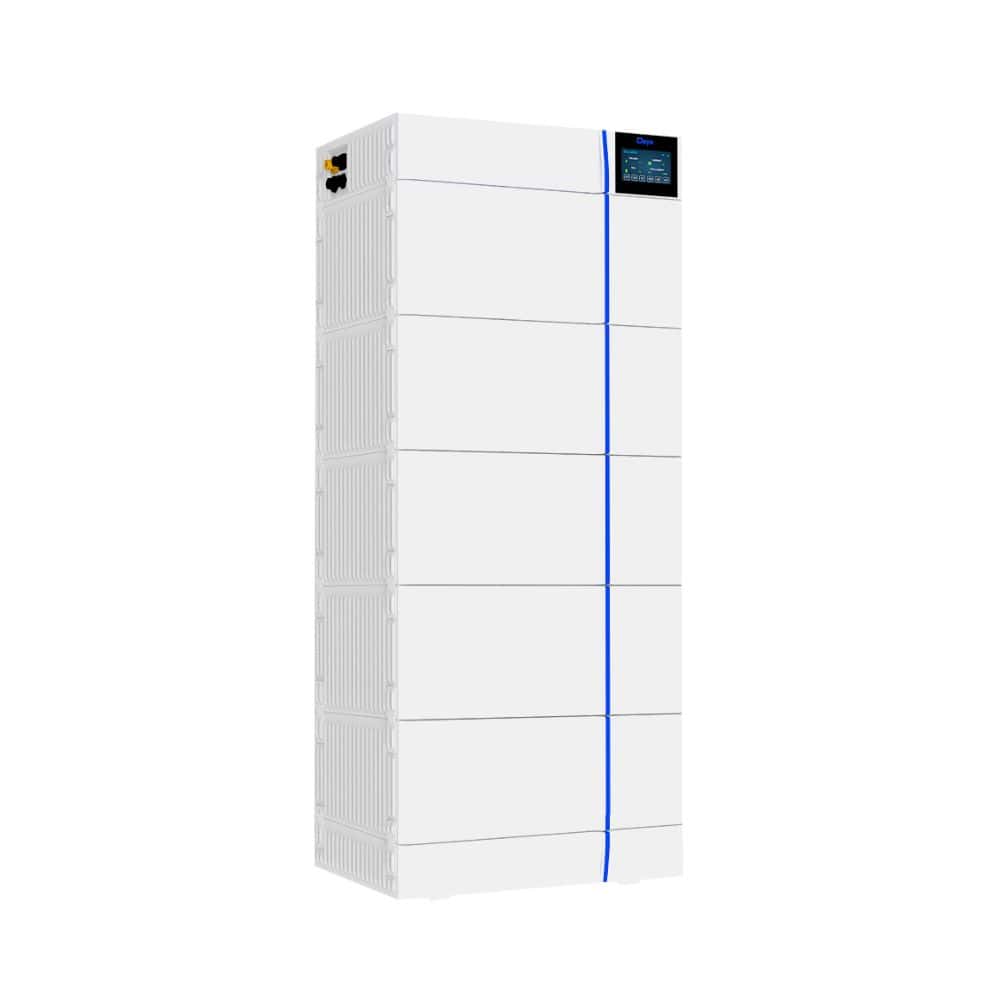

The Deye GB-L Pro series is a floor-mounted, high-voltage home battery built around 4 kWh LiFePO4 modules. You stack between two and six modules on a single base, and the cable-free connection between them keeps the installation tidy while improving round-trip efficiency.
Because the whole family shares one module, one control box and one footprint of 540 × 385 mm, you can start with 8 kWh today and grow the stack later as your consumption changes. Under Cyprus net billing, where self-consumed energy is worth considerably more than exported energy, storage is what turns midday production into evening savings.
- • 8, 12, 16, 20 or 24 kWh in a single stack
- • Pairs with high-voltage hybrid inverters via the GB-LBS Pro control box
- • IP65 rated with ≥C2 anti-corrosion protection for Cyprus coastal homes
- • 10-year warranty and a 6000-cycle design life
Why the GB-L Pro series
High-voltage stack design
Cable-free high-voltage stacking delivers higher efficiency and a faster, cleaner installation.
All-round safety
A built-in explosion relief device dredges gas and the fire protection device cuts off the fire source within 3 seconds.
Built for durability
IP65 protection and a ≥C2 anti-corrosion design deliver long-term durability in coastal Cyprus conditions.
Thermal management
Intelligent temperature sensing across core components ensures stable, reliable performance.
Wide temperature operation
Low-temperature battery cells enable reliable performance in environments below -20°C.
Smart, visible management
Real-time alerts, remote upgrades and an intuitive LCD interface keep the system always under control.
Specifications by variant
All five variants share the same 4 kWh module, chemistry and footprint. The differences come down to how many modules are stacked.
| Model | GB-L8 Pro | GB-L12 Pro | GB-L16 Pro | GB-L20 Pro | GB-L24 Pro |
|---|---|---|---|---|---|
| Battery modules in series | 2 | 3 | 4 | 5 | 6 |
| System nominal voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 |
| System energy (kWh) | 8 | 12 | 16 | 20 | 24 |
| System usable energy (kWh) | 7.2 | 10.8 | 14.4 | 18 | 21.6 |
| Dimensions W × D × H (mm) | 540 × 385 × 650 | 540 × 385 × 870 | 540 × 385 × 1090 | 540 × 385 × 1310 | 540 × 385 × 1530 |
| Weight (kg) | 97 | 136 | 175 | 214 | 253 |
Shared across the family
| Cell chemistry | LiFePO4 |
| Battery module | GB-L-Pro-Pack4.1-2, 4 kWh, 102.4 V, 40 Ah |
| System operating voltage | 166.4 to 700.8 V |
| Nominal charge / discharge current | 40 A (recommended 20 A) |
| Peak discharge current | 50 A for 2 minutes at 25°C |
| Working temperature | Charge and discharge: -20 to 55°C |
| Recommended depth of discharge | 90% |
| Cycle life | ≥6000 cycles at 25±2°C, 0.5C / 0.5C, EOL 70% |
| Communication | CAN2.0, RS485 |
| LCD display | State of charge, power, total voltage |
| Enclosure protection | IP65, floor mounted |
| Humidity / altitude | 5% to 90% / up to 2000 m |
| Warranty | 10 years |
| Certification | CE, IEC62619, VDE 2510-50, UN38.3 |
System components
GB-LBS Pro control box
High-voltage battery cluster control box. 120 to 750 Vdc, 40 A nominal and 50 A maximum charge or discharge, -20 to 65°C, IP65, 540 × 385 × 110 mm, approximately 12 kg.
GB-L-Pro-Pack-4.1-2 module
4 kWh LiFePO4 module, 102.4 Vdc, 40 Ah, 40 A nominal and 50 A peak discharge, IP65, 540 × 385 × 220 mm, approximately 39 kg.
GB-L base and cabling
Battery module base, 540 × 385 × 100 mm, approximately 7 kg. Supplied with 2 metre ECOM 2.0 communication cable and EP / EN 2.0 power cables rated 1000 V, 6 AWG.
Thinking about home storage?
Tell us your consumption and roof size and our engineers will recommend the right GB-L Pro variant for your home.
